ID # 19835611


Call for Price

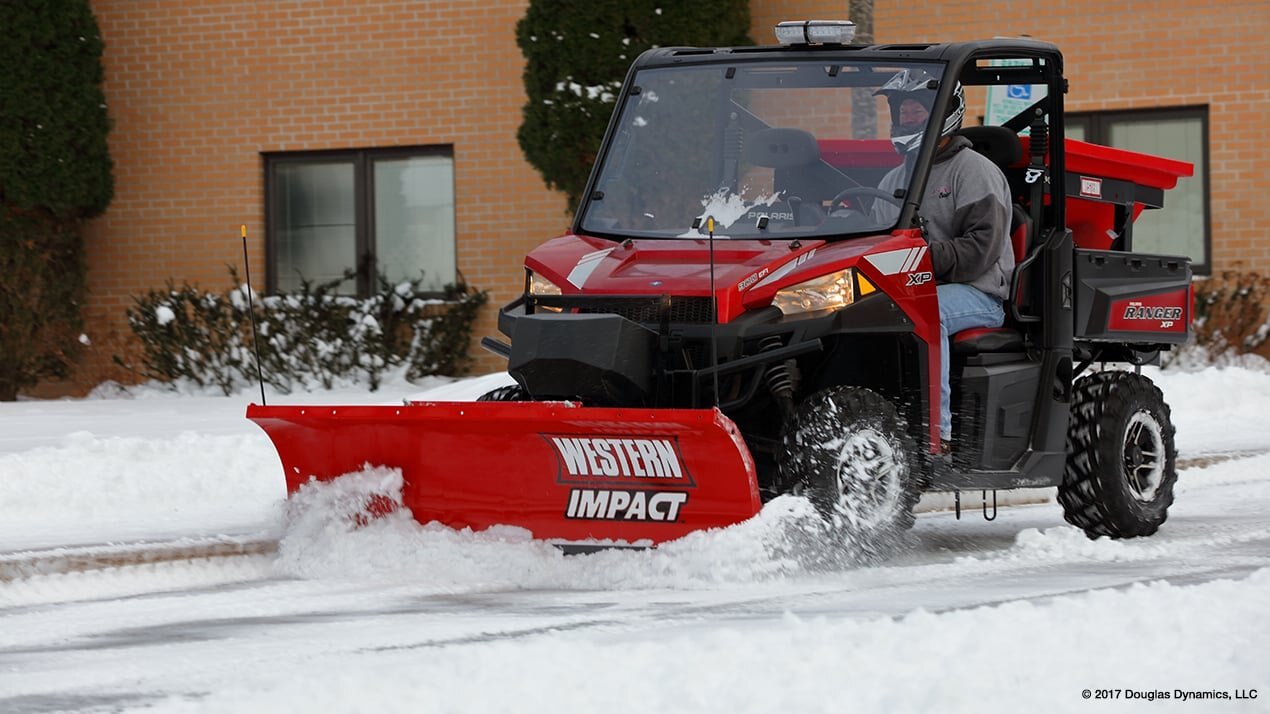

Winter knows no limits—which means you shouldn’t either. Built exclusively for utility vehicles, the WESTERN® IMPACT™ Heavy-Duty UTV snow plows are professional-grade plows built to go anywhere that demands WESTERN-grade performance. Constructed from high-strength, low alloy steel components, both models feature an easy-on/easy-off UTV mounting system and removable receiver brackets for exceptional ground clearance. IMPACT UTV plows feature Scrape Lock for clean scraping and back dragging.

IMPACT™ Heavy-Duty
Sale Type
unique features


We manufacture our own hydraulic components to ensure the highest standards of quality and reliability, so that you get a hydraulics system that's not only fast and responsive, but that's built to last season after season.

Fully enclosed components are protected from the elements.

Hydraulic Scrape Lock holds the blade down for more efficient scraping and clean back dragging.

WESTERN® IMPACT™ Heavy Duty Ground Clearance

The removable receivers and low profile undercarriage provide exceptional ground clearance and maximize the ramp angle, so your unit will be trail ready when the plow is not attached.

WESTERN® IMPACT™ Heavy Duty UTV Mounting System

Hooking up the IMPACT™ v-plow or straight blade is simple. With the receiver brackets installed on your utility vehicle, either drive in or manually push the plow into the receivers. Push up on the headgear to engage the hitch pins in the receiver holes, then slide the handle to lock the hitch pins in place. Finally, connect the electrical plug.

Detaching the plow is just as easy. The receivers are removable, to maintain ground clearance.

WESTERN® IMPACT™ Heavy Duty Tractor Compatible Mount Kit

Designed for easy installation onto a wide range of tractor models, these mount kits make it possible for the IMPACT heavy-duty straight blade and v-plow to fit on a compact tractor. They are flared both vertically and horizontally to ensure proper alignment and make the drive-in connection easier. The push beam, which makes up the front portion of the mount, can be quickly detached to allow for a loader attachment.

WESTERN® IMPACT™ Heavy Duty V-plow — Blade Construction

The IMPACT™ flared v-plow blades go from a 25¼" center height to a full 29¼" at the outer edge. The 14-gauge powder coated steel flared moldboard is 6' wide and comes with a standard 5" high-carbon steel cutting edge, reducing wear and extending the life of the blade.

WESTERN® IMPACT™ Heavy Duty V-Plow — Structural Reinforcement

Six vertical ribs, coupled with high-strength, low-weight, alloy steel components provide a favorable strength-to-weight ratio, keeping stress off of the UTV frame.

A 3/4" diameter, steel center pin resides within a three-connection-point hinge, keeping the wings tight for improved performance.

WESTERN® IMPACT™ Heavy Duty V-Plow — Double-acting Cylinders

A standard feature on the IMPACT™ UTV v-plow, UltraLock double-acting cylinders allow the operator to use the v-plow in straight blade mode by locking the wings together instead of having to toggle each wing independently.

The double-acting cylinders also hold the wings firmly in place for clean, efficient back dragging.

WESTERN® IMPACT™ Heavy Duty V-Plow — Trip Protection

Each blade features independent trip-edge design with heavy-duty coil springs for protection when encountering bumps and obstacles. Whether in V, scoop or straight blade configuration, the trip-edge helps protect the plow, the equipment, and the operator. Since only the edge trips, snow remains in front of the blade, so you can keep going without spilling the entire load of snow.

WESTERN® IMPACT™ Heavy Duty V-Plow — Steel Center Gap Cover

For the cleanest pass in any position, the IMPACT™ UTV v-plow has a snow control deflector over the center hinge to help prevent snow from being lost over the top.

WESTERN® IMPACT™ Heavy Duty Straight — Blade Construction

The IMPACT™ straight blade UTV plow features a 14-gauge powder coated steel moldboard that is 6' wide and comes with a standard 5" steel cutting edge.

WESTERN® IMPACT™ Heavy Duty Straight — Structural Reinforcement

Four vertical ribs and high-strength, low-weight, alloy steel components ensure the plow is strong enough for commercial operation and light enough to fit more UTVs.

WESTERN® IMPACT™ Heavy Duty Straight — Trip Protection

Two heavy-duty coil springs protect your plow and UTV by allowing the whole blade to trip when striking obstacles.

universal features


The ULTRAFINISH™ baked on powder coat with epoxy primer is standard on all WESTERN® plows, providing outstanding protection against wear and rust. SECURITY GUARD™ ANTI-THEFT SYSTEM

The exclusive WESTERN® SECURITY GUARD™ snowplow anti-theft system is a safe and secure way to electronically lock your snow plow when it is detached from your truck as a deterrent from theft.

WESTERN® IMPACT™ Heavy Duty IMPACT® Control Options

The intuitive UTV-specific hand-held control lets you raise and lower the plow, and position the blade in V, scoop, angle and straight modes. An optional joystick control is also available for easy blade control operation when wearing gloves.

WESTERN® IMPACT™ Heavy Duty Scrape Lock

The WESTERN® Scrape Lock system locks the plow in any position you put it in to give you a cleaner scrape, especially while back dragging. With the plow locked in place, Scrape Lock gives you the performance of a larger plow without the extra weight and without the need to push any extra buttons.

WESTERN® IMPACT™ Heavy Duty Pre-Punched Blades for Accessories

The blade is pre-punched for easy installation of accessories, providing a custom fit. The pre-punched holes also prevent damage to the powder coat that can sometimes occur when installing an accessory.

featured accessories


Get more jobs done faster with plow wings. Available for the IMPACT™ UTV v-plow, these wings add more carrying capacity. Made of 14-gauge steel with high strength steel ribs, the wings are a perfect compliment to an IMPACT UTV v-plow blade. No installation required—the innovative design means quick and easy attach/detach.

*Wing Extension Kits cannot be used simultaneously with Curb Guards.


The IMPACT™ Heavy-Duty UTV light bar accessory features twin LED headlamps to help keep you on the right path. Like IMPACT UTV snow plows, the light bar accessory is sturdy and engineered to stand up to the rigors of commercial plowing operations.

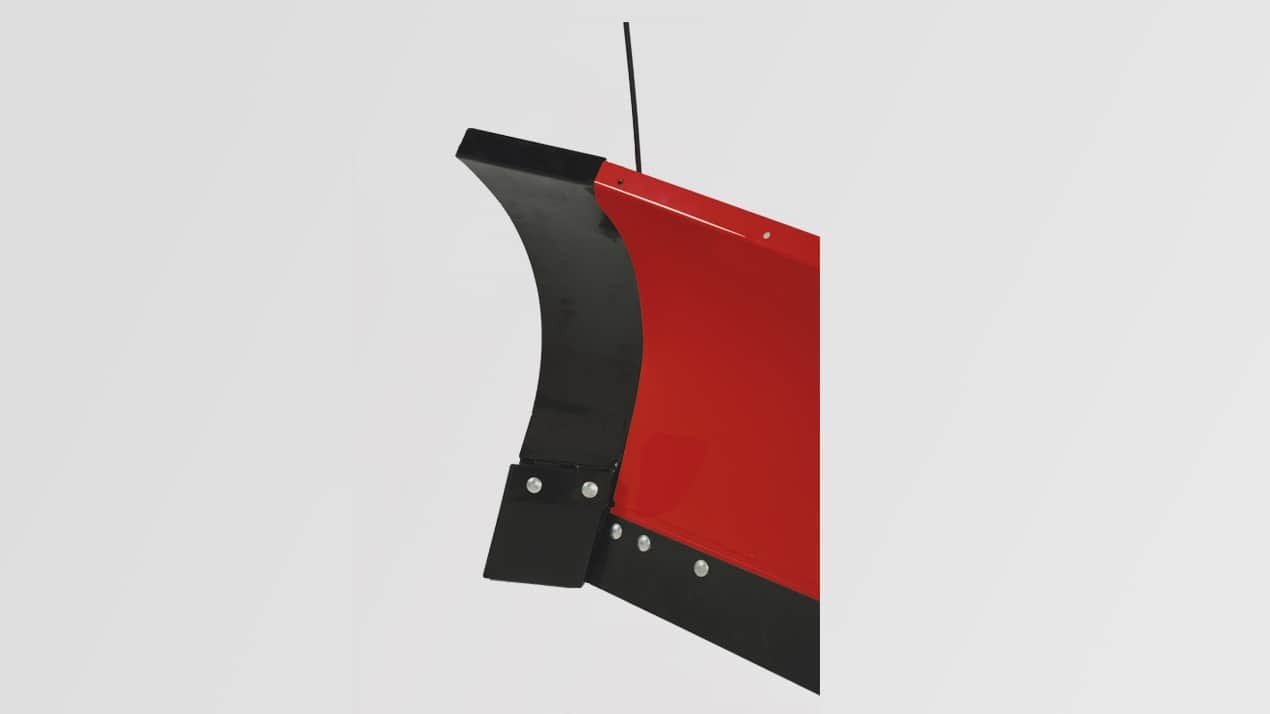

Control the snow and always see where you're going with optional deflectors. The 2-ply rubber snow deflector custom fits the IMPACT™ UTV V-plow blades. Bolt on steel plates ensure proper positioning of the deflectors to keep your view clear and clean.

Models             V-Plow         Straight Blade
Moldboard Options Steel Steel
Blade Width 6'0" 6'0"
Blade Height At Center: 25.75"
At End: 29.25"
Blade Thickness 14 ga 14 ga
Trip Springs 2 2
Ribs 6 4
Lift Cylinder 1.5" x 6" 1.5" x 6"
Angling Rams 1" x 8.75" 1" x 7"
Plowing Width
(Full Angle)
Full Angle: 5'0"
Scoop: 4'7"
Full V: 5'0"
Full Angle: 5'4"
Approx. Weight
(Without Mount)
354 lb 261 lb
Cutting Edge 0.25" x 4" 0.25" x 4"
