Overview

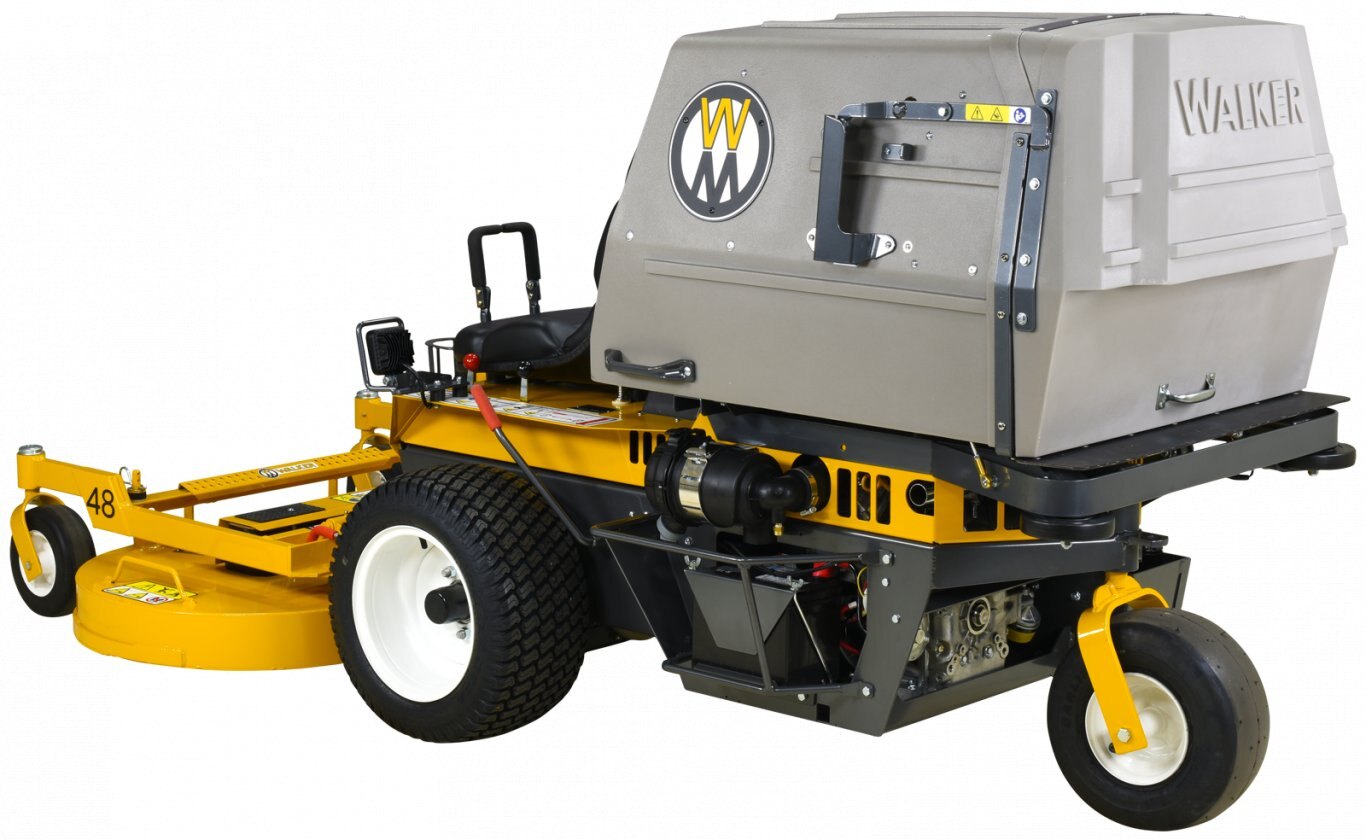

The S18 continues to build on the Model S platform with an 18 HP engine and Walker’s patented Grass Handling System with Thru-Shaft PTO. It is faster and more powerful, and with reduced weight, the S18 is designed to be productive and efficient. Able to run 36 to 56 inch decks, the S18 is the perfect choice for residential properties, gated yards, and demanding customers.

The S18 continues to build on the Model S platform with an 18 HP engine and Walker’s patented Grass Handling System with Thru-Shaft PTO. It is faster and more powerful, and with reduced weight, the S18 is designed to be productive and efficient. Able to run 36 to 56 inch decks, the S18 is the perfect choice for residential properties, gated yards, and demanding customers.



Specifications
Model
S18
Year
2022
Sale Type
New
Manufacturer
Walker Mowers
Type
Collection
Decks
5 Collection, 5 Discharge, 4 Mulching
Power
18 HP
Engine
Briggs & Stratton Vanguard
Key Attributes
Compact, Agile, Productive
Standard Options
18 x 7.0-8 Turf Tire, Standard Seat
Ideal Application
Residential Properties, Small Commercial Properties
s18 comparison

S18

S14i

C19
Engine Briggs Vanguard V-Twin Kohler ECH440 Kohler CH620
Fuel System Carb EFI Carb
Cooling System Air Air Air
Displacement 570 cc (34.8 cu. in.) 429 cc (24.7 cu. in.) 674 cc (41.1 cu. in.)
Max Power 18 HP @ 3600 RPM 14 HP @ 3600 RPM 19 HP @ 3600 RPM
Max Torque 29.2 ft-lbs 22.7 ft-lbs 35 ft-lbs
Fuel Capacity 4 gal (15.1 liter) 1.9 gal (7.2 liter) 4 gal (15.1 liter)
Grass Handling Collection Collection Collection
Seat Standard Seat Standard Seat Standard Seat
Tires 18 x 7.0-8 Turf Tire 18 x 7.0-8 Turf Tire 18 x 8.5-10 Turf Tire
Weight 636 lbs (289 kg)[1]
827 lbs (375 kg)[2]		 596 lbs (270 kg)[1]
787 lbs (358 kg)[2]		 734 lbs (333 kg)[1]
925 lbs (419.5 kg)[2]
Dimensions 46.5 in (118 cm)" H x 43.25 in (110 cm)" W x 89.25 in (226.5 cm)" L[2] 46.5 in (118 cm)" H x 43.25 in (110 cm)" W x 89.25 in (226.5 cm)" L[2] 47.5 in (121 cm)" H x 43.25 in (110 cm)" W x 89.25 in (226.5 cm)" L[2]
[1] Tractor only. [2] Tractor with C42 deck. [3] Tractor with M48 deck.

engine
Fuel
Regular grade unleaded gasoline (87 octane minimum, 10% ethanol maximum)
Model
356447-1338
Max Power
18 HP @ 3600 RPM
Max Torque
29.2 ft-lbs
Displacement
570 cc (34.8 cu. in.)
Manufacturer
Briggs & Stratton Vanguard
Fuel Capacity
4 gal (15.1 liter)
Cooling System
Air
electrical
Battery
12V, 300CCA
Charging Output
16 Amp DC (Regulated)
Charging System
Flywheel Alternator
transmission
Neutral
Transmission Release by Manual Dump Valve
Steering
Hand Lever Control, Individual Wheel
Parking Brake
Internal Mechanical Cog Lock for each Transaxle (Single Lever Control)
Forward MPH (km/h)
0-7.4 (0-11.9) Infinitely Variable
Manufacturer/Model
Dual, Independent Hydro-Gear® ZT3100 Integrated Transaxles
Forward Speed Control
Precision Friction Lock Lever, Cruise Control, with Neutral-Park Position
blade drive
PTO Shaft
Quick Disconnect Splined Shaft with Two (2) High-Speed U-Joints
Blade Drive Clutch And Brake
Manual Belt Tightener Clutch and Band Brake (stops blades within 5 serconds of disengagement)
grass handling
Blower
12.75 in. Diameter, Three-Blade Paddle Wheel, Integrated Thru-Shaft PTO
Powerfil®
Oscillating Delivery Spout Driven by 12 Volt Electric Gearmotor Spreads Material throughout Interior of Catcher @ 35 Cycles/Min
Full Signal
Grass-Pak® full signal alerts operator when catcher box is full
Max. Blower RPM
2900 RPM
Grass Catcher Capacity
65 Gal / 7.0 Bu / 246 L
deck
Cutting Height
1 to 4 in (2.5 to 10 cm) or 1.5 to 4.5 in (4 to 11.5 cm) in 1/2 in (1 cm) Increments
Deck Suspension
Torsion-Flex Frame with Caster Wheels and Counterweight Springs
Recommended Cut Width
Collection: 36 to 48 in. (91 to 122 cm), Side Discharge: 36 to 56 in. (91 to 142 cm), Mulch: 36 to 48 in. (91 to 122 cm)
tires
Drive
18 x 7.00-8 (pneumatic 4-ply, standard) 18 x 8.5-10 (pneumatic, 4-ply, optional low-profile)
Tailwheel
13 x 6.50-6 (pneumatic 4-ply)
Deck Caster
8 x 3.00-4 (Foamed rubber standard, optional pneumatic)
size and weight

LENGTH

  • Tractor Only: 65 in (165 cm)
  • Tractor with C42 deck: 89.25 in (226.5 cm)
  • Tractor with C48 deck: 94 in (239 cm)
  • Tractor with deck tilted: 77 in (196 cm)
  • Tractor wheel base: 42.25 in (107 cm)

WIDTH

  • Tractor Only (Outside Tire): 38.5 in (98 cm) NOT narrow drive tires
  • Tractor with C42 deck: 43.25 in (110 cm)
  • Tractor with C48 deck: 49 in (125 cm)

HEIGHT

  • Tractor: 46.5 in (118 cm)

WEIGHT

  • Tractor Only: 636 lbs (289 kg)
  • Tractor with C42 deck: 827 lbs (375 kg)
  • Tractor with C48 deck: 859 lbs (390 kg)
