ID # 21503354

Simplicity Legacy® XL Subcompact Garden Tractor

Name: Simplicity Legacy® XL Subcompact Garden Tractor
Brand: Simplicity
Availability: InStock

Videos

Call for Price

Get a Quote Get Financed Value a Trade Book a Demo Get Directions Get Directions Print

Overview

Check all of those yard jobs off the to-do list in no time with the Legacy XL subcompact garden tractor. This workhorse offers reliable power and dynamic capabilities in a subcompact package without skimping on the comfort features and luxury feel Simplicity is famous for. The Legacy XL is your new Saturday secret weapon.

Specifications

Model

Legacy® XL Subcompact Garden Tractor

Year

2022

Sale Type

New

Manufacturer

Simplicity

Seat

18" Premium High-Back

Brake

Internal Wet Disc

Cylinders

Front Axle

Shaft-Driven

Start Type

Electric, Key

Frame Steel

7-Gauge

Model Number

2691524

Power Rating

Battery (cca)

500

Choke/Throttle

No Choke, Single-Lever

Marketing Model

33 4WD (w/540 Rear PTO)

Rear Tires (in)

26 x 12 - 12 / 4-Ply Field

Front Tires (in)

18 x 8.5 - 8 / 4-Ply Field

Transmission Type

Tuff Torq® K92 (rear) / Shaft-Driven Front Axle

Ground Speed-Fwd (mph)

0 - 9

Ground Speed-Rev (mph)

0 - 5.5

Engine Displacement (cc)

885

Fuel Tank Capacity (gal)

Transmission Differential

Hydrostatic w/ Differential Lock

Automatic Controlled Traction™

Standard

features

POWERFUL WORKHORSE

A reliable Vanguard™ Big Block™ 885cc V-Twin Engine offers the power and performance for the most challenging application. Electronic Fuel Injection (EFI) option provides easy automotive-style starting whether the engine is cold or hot and greater fuel efficiency. Plus the 33HP gasoline option is second to none with exceptional torque and year over year reliability.

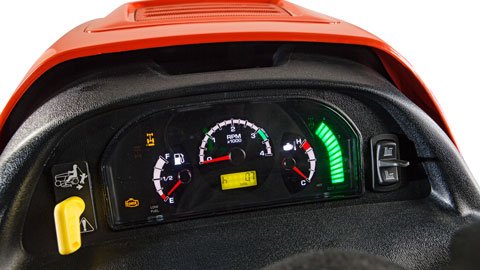

DELUXE INSTRUMENT PANEL

An intuitive instrument panel complete with a fuel gauge and height-of-cut indicator provides the operator with a premium experience.

UTILITY LIGHT

The top-mounted work light conveniently adjusts to meet your directional needs and adds just the right amount of light to your project.

OPERATOR COMFORT

The deep-cushioned commercial-style 18-inch high-back seat with armrests provides comfortable operation.

4WD

Reach new performance levels. The four wheel drive model features a shaft driven front axle for reliability and traction; shift between 2WD and 4WD on-the-go so it's there when you need it.

HYDRAULIC CONTROL LEVER

The all-in-one hydraulic joystick lever is integrated into the dash to easily raise, lower or steer attachments such as the mower deck, dozer blade or front-end loader.

MOWER DECK OPTIONS

The rugged 61" fabricated mower deck offers a unique drive-over design to make installation and removal easy. A 52" fabricated mower deck (not a drive-over design) is also available. Both mower deck models feature a limited lifetime warranty*. (Mower decks are sold separately)

ATTACHMENT OPTIONS

A long list of optional attachments, including a front-end loader, tiller, snow blower and rear backhoe, makes this tractor even more versatile and helps you accomplish any task.

attachments

Turbo Collection System

The turbo blower tractor attachment easily attaches to the mower and gets power directly from the mower rather than an expensive auxiliary engine design.

Wide Body Cart Collector

The 17-bushel hopper tilts for easy emptying; swivel-wheel design makes yard cleanup easy.

Mulching Kit

Our innovative system reduces grass clippings and returns them to your lawn.

Simplicity Legacy® XL Subcompact Garden Tractor Tractor Tire Chains, Rear Weights & Carrier

Weight carrier and weights install easily. Weights (33- or 50-lbs each) enhance traction on your mower with front tractor attachments or on slippery ground.

Snow Cab-Soft Side

The snow cab snow blower attachment is made of vinyl with clear, shatterproof, non-fogging Lexan windows. (Broadmoor shown; Cab may vary from model shown. Cab has vinyl sides with plastic windshield and wiper.)

Clean Sweep™ Triple Grass Catcher

Collect up to 10 bushels of grass clippings in three removable bags.

Box Scraper/Scarifier

Prepares and levels soil for smoother landscaping. (3-point hitch)

Dump Cart

This sturdy, 10-cu. ft., multi-purpose cart is great for yard chores and easy to attach.This sturdy, 10-cu. ft., multi-purpose cart is great for yard chores and easy to attach.

Front-End Loader

Featuring a 500-lb. lift capacity, a 48-inch bucket and a curved boom design, the front-end loader is easily installed/removed with a hydraulic walk-on/off design, making it the perfect addition to the big chores in your yard.

Front Carrier and Weights

Maintain responsive handling and traction with heavy, rear-mounted attachments.

Fabricated Mower Decks

A 52- or 61-inch heavy-duty fabricated mower deck ensures durability for the toughest conditions while also giving your yard a beautiful Simplicity Cut. The 61-inch deck includes a unique drive-over design to make installation and removal even easier.

60" Snow/Dozer Blade

Heavy-gauge steel, hydraulic lift blade is spring-loaded to absorb shock. Available with multi-position hydraulic angling.

50" Tiller

Featuring a heavy-duty gearbox and side shift positioning. This heavy-duty tiller has a cultivating depth up to 7".

3-Point Hitch Attachment Category 1 (Modified)

Category 1, (modified) and 540 rpm PTO allows operation of heavy rear tractor attachments such as a tiller, cultivator or disk.

60" (Hydraulic) Rotary Broom

26″ diameter heavy-duty brush, hydraulic or manual angling; shaft driven with quick-coupler design.

47" Two-Stage Snow Blower Attachment

Make heavy-duty snow removal easy with a two-stage snow blower attachment.

Kwik-Way KW80 Backhoe

The backhoe has a 9" wide bucket, digs 6.5-ft deep, with a 10-ft reach and includes stabilizer arms. Hydraulic controls make each implement function efficiently.
